Audio Technica - AT-LP7X - Fully Manual Belt-Drive Turntable

This item is fulfilled by our supplier and not stocked at our Bondi Junction store. Choose in-store pickup at checkout, and we’ll have it ready for collection within 1–2 business days.

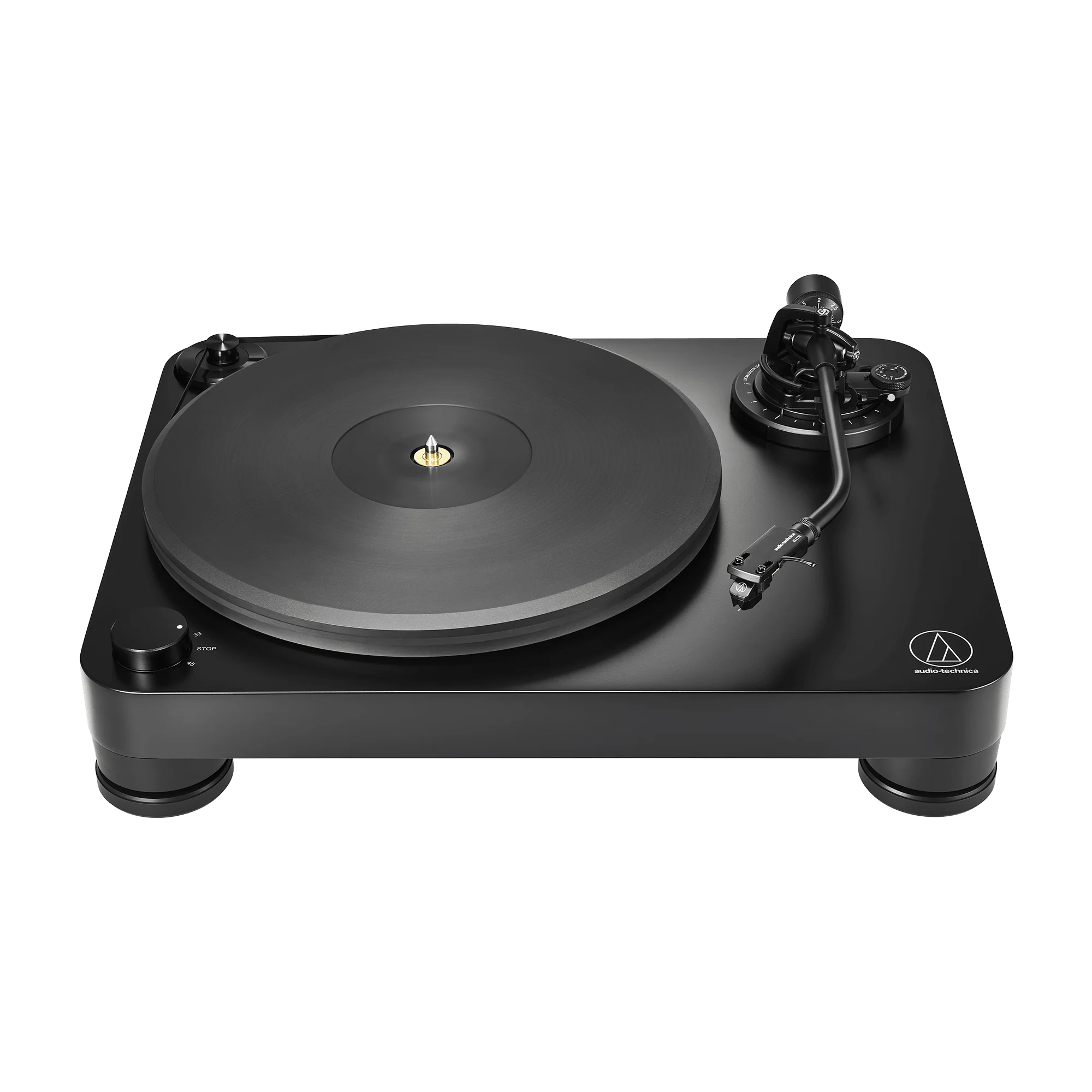

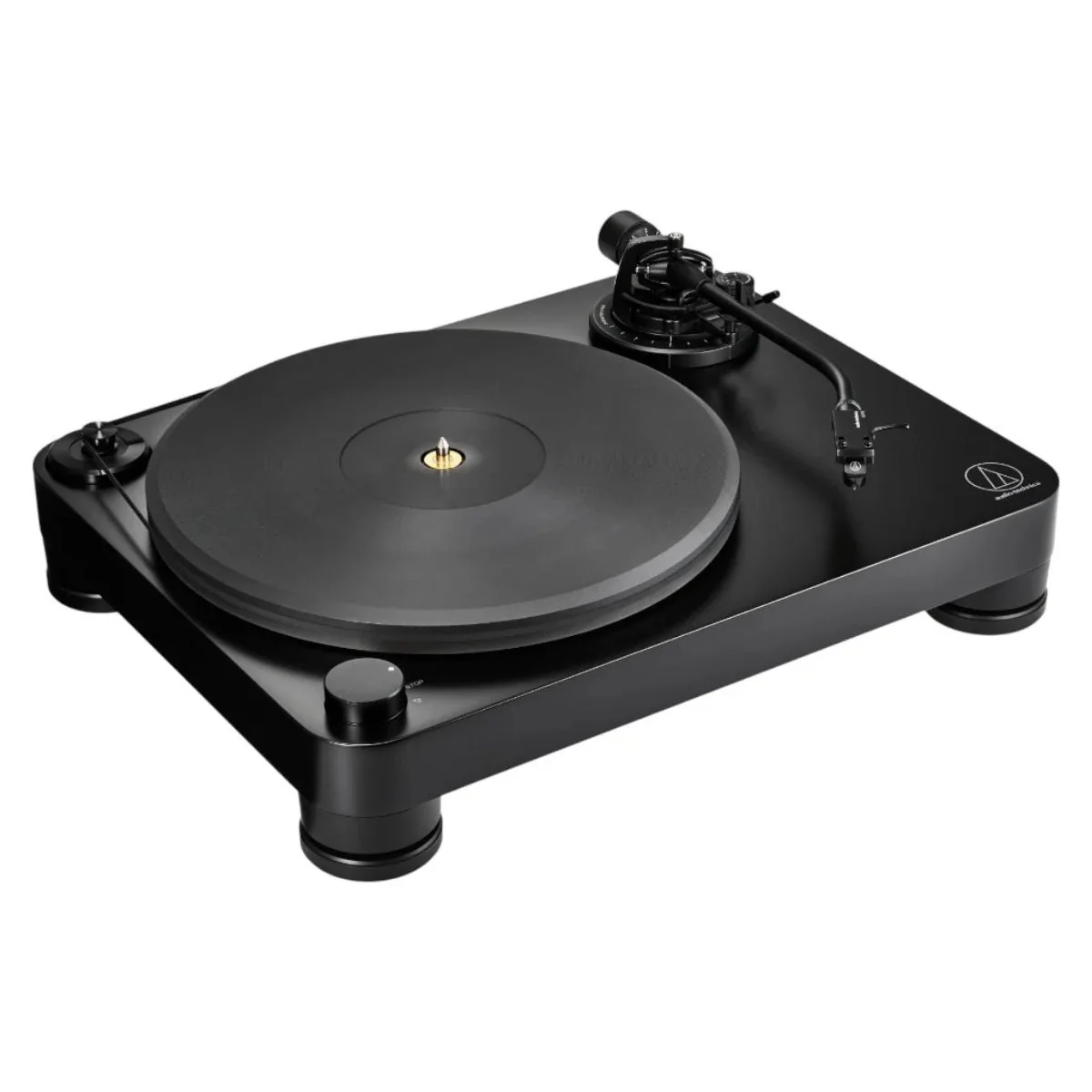

The AT-LP7X fully manual belt-drive turntable blends analog excellence with style and versatility. Featuring a dense MDF plinth and acrylic platter to minimise unwanted resonance and vibration, this elegant, matte-black turntable delivers sound that’s just as clean and refined as its appearance.

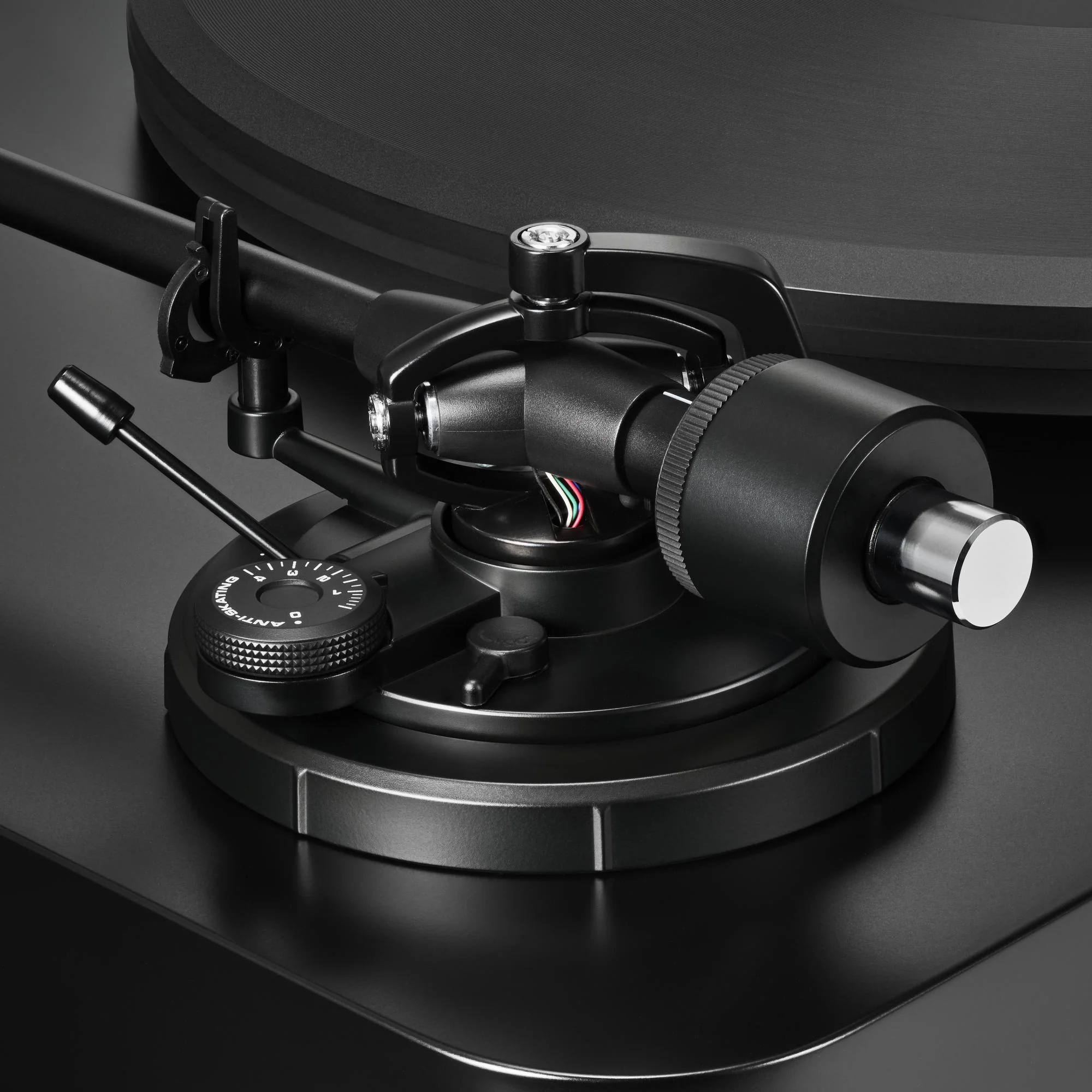

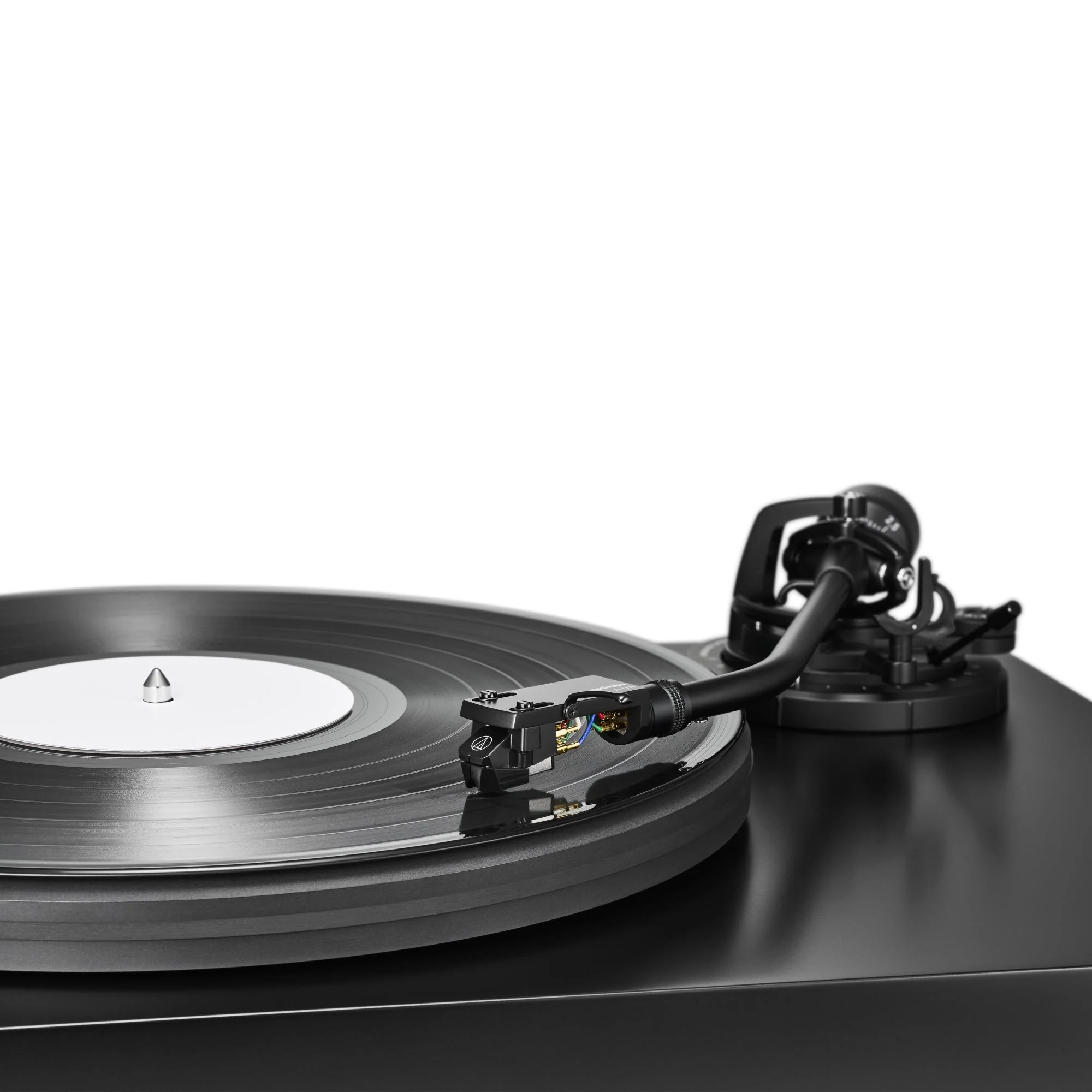

In designing the LP7X, we paid special attention to chassis geometry, ensuring that the platter, spindle, and tonearm were optimally positioned for accurate, distortion-free tracking. The J-shaped aluminum tonearm, inspired by classic A-T models of the 1960s and ’70s, features a dual-axis gimbal with precision ball bearings to further enhance tracking performance.

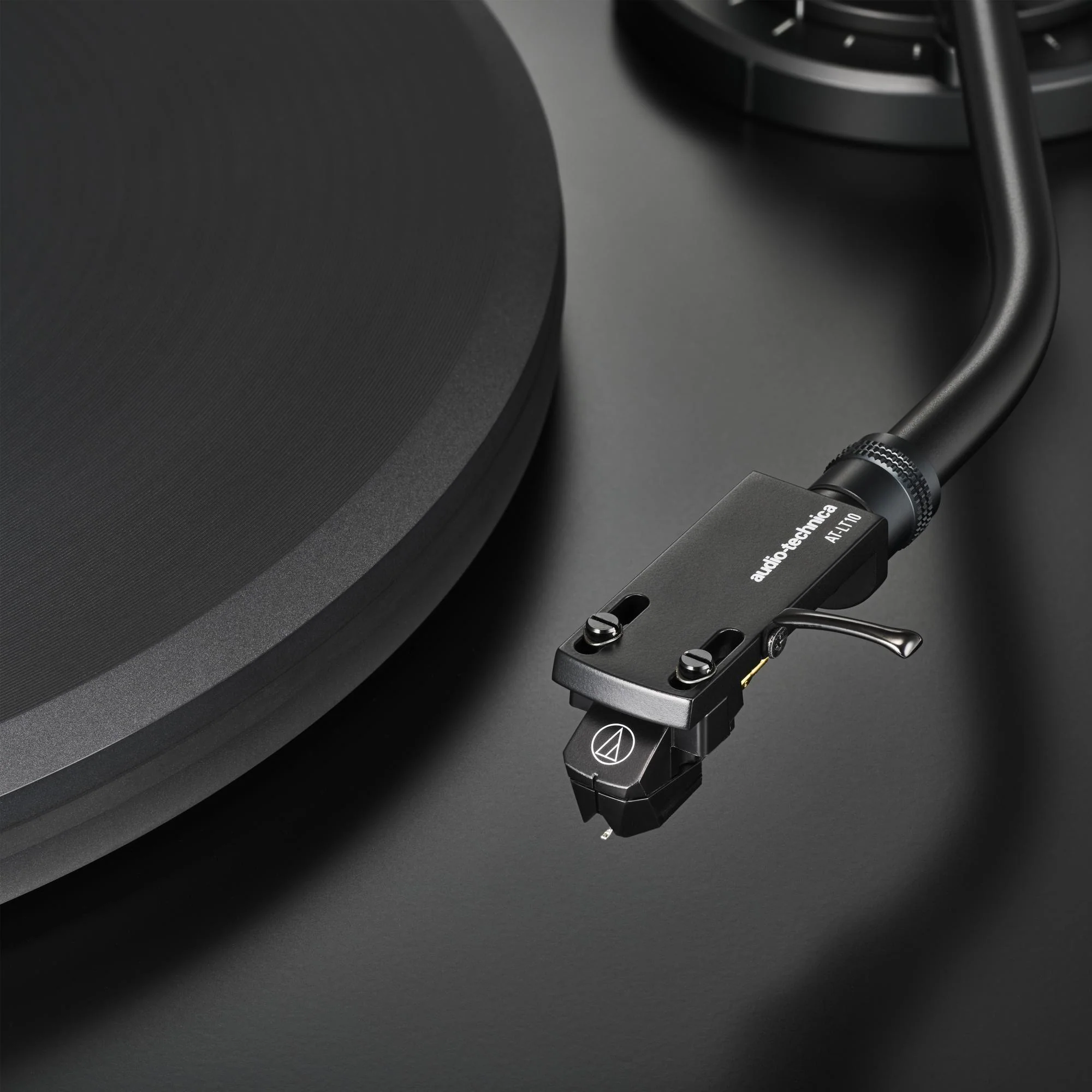

The turntable comes with our AT-LT10 headshell and AT-VM95E BK (black) cartridge with 0.3 x 0.7 mil elliptical stylus, providing excellent channel separation and low distortion for outstanding tonal quality. For easy customisation, the stylus can be replaced or interchanged with other styli in the VM95 line, offering a wide choice of options for every budget and application.

The AT-LP7X is ideal for those interested in experimenting with alternate cartridges. The tonearm’s VTA (vertical tracking angle) adjustment and 16 g subcounterweight allow you to use a broad range of other cartridges and headshells with a combined weight of up to 23.5 g. (A 32 g subcounterweight, available separately, enables the use of even heavier cartridge/headshell combinations.) With its built-in switchable phono pre-amplifier, the AT-LP7X also gives you the option of using MC (moving coil) cartridges.

The turntable’s 20 mm acrylic platter is driven by an optical sensor-monitored motor that ensures a continuously accurate platter rotation speed of 33-1/3 or 45 RPM. The motor is mounted on vibration-dampening rubber bushings designed to decouple the motor from the plinth, minimising the transmission of mechanical noise and oscillations. An external switching power supply isolates the AC-to-DC conversion to prevent it from adding any electrical interference, and the turntable’s spring-based, height-adjustable isolation feet offer excellent protection against external noise.

The AT-LP7X comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable dust cover.

Features

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM


• Heavy 40 mm MDF (medium density fiberboard) cabinet construction reduces resonance and vibration for clearer sound


• Motor features a speed-sensor system to maintain accurate platter rotation speed


• 20 mm-thick, high-density acrylic platter offers high rotational inertia to spin records at a consistent speed (no platter mat required)


• J-shaped tonearm with adjustable VTA (vertical tracking angle)


• AT-VM95E BK (black) cartridge (0.3 x 0.7 mil elliptical stylus) pre-mounted to the lightweight AT-LT10 removable headshell


• AT-VM95 cartridge is compatible with most VM95 Series replacement styli, offering a wide choice of options for every budget and application


• Included 16 g subcounterweight provides an expanded cartridge/headshell weight range of 14.0–23.5 g


• A larger 32 g subcounterweight is available separately to enable the use of cartridge/headshell combinations up to 28.5 g


• Adjustable anti-skate control to counter the inward force the styli experiences during playback


• Built-in switchable phono pre-amplifier with selectable modes for MM (moving magnet) or MC (moving coil) cartridges


• Includes dual RCA (male) to dual RCA (male) stereo cable with ground, 45 RPM adapter, and removable dust cover

Specifications

Turntable
Motor	DC servo motor
Drive Method	Belt drive
Speeds	33-1/3 RPM, 45 RPM
Turntable Platter	20 mm (0.79") thick acrylic platter
Wow and Flutter	< 0.1% (WTD) at 3 kHz (JIS)
Signal-to-Noise Ratio	> 60 dB
Output Level	PHONO: 4.0 mV nominal at 1 kHz, 5cm/sec LINE: 252 mV nominal at 1 kHz, 5cm/sec
Phono Pre-Amp Gain	MM: 36 dB nominal, RIAA equalized MC: 56 dB nominal, RIAA equalized
Power Consumption	5.5 W
Dimensions	450 mm (18”) × 352 mm (14”) × 157 mm (6.2”) (W×D×H)
Weight	Approx. 7.6 kg (17 lbs)
Operating Temperature	5°C to 35°C (41°F to 95°F)
Accessories Included	・Dust cover ・Platter ・Drive belt ・Counterweight ・Subcounterweight (light) ・Headshell (AT-LT10) with VM stereo cartridge (AT-VM95E BK) ・45 RPM adapter ・RCA audio cable (Approx. 1.4 m (4.6’)) ・AC adapter (Approx. 1.3 m (4.3’)) ・Gloves
Sold Separately	Subcounterweight (heavy)
Replacement Stylus	AT-VMN95E BK
Replacement Headshell	AT-LT10
Replacement Belt	AT-LP7X exclusive belt (sold separately)
Notes	For product improvement, the product is subject to modification without notice. The included AC adapter may differ depending on the country of sale. Check the rating label on the AC adapter. For details, contact your local Audio-Technica dealer.

Tonearm
Type	Static balanced J-shaped tonearm
Effective Length	247 mm (9.7”)
Overhang	15 mm (0.59”)
Maximum Tracking Error Angle	< 2.0°
Tracking force adjustment range	0.0 - 4.0 g
Applicable Cartridge Weight	14.0 to 19.5 g (without subcounterweight) 17.5 to 23.5 g (with subcounterweight (light)) 22.0 to 28.5 g (with subcounterweight (heavy)*) *The subcounterweight (heavy) is sold separately.

Cartridge
Model	AT-VM95E BK
Type	VM
Recommended Load Impedance	47,000 ohms
Output Voltage	4.0 mV (1 kHz, 5 cm/sec)
Stylus Shape	0.3 × 0.7 mil bonded elliptical stylus
Cantilever	Aluminum pipe
Tracking Force	1.8 to 2.2 g (standard 2.0 g)
Weight	6.1 g (0.22 oz)

AC Adapter
Rated Input Voltage	100 to 240 V AC
Rated input current	0.6 A max.
Rated frequency	50 Hz / 60 Hz
Rated output voltage	12 V DC
Rated Secondary Current	0.5 A
Cable length	Approx. 1.3 m (4.3’)

Headshell
Model	AT-LT10
Weight	Approx. 10.7 g (0.38 oz) (including lead wires) Approx. 10.0 g (0.35 oz) (excluding lead wires)
Overhang Adjustment	- 5.5 mm to + 2.5 mm (when using AT-VM95E)
