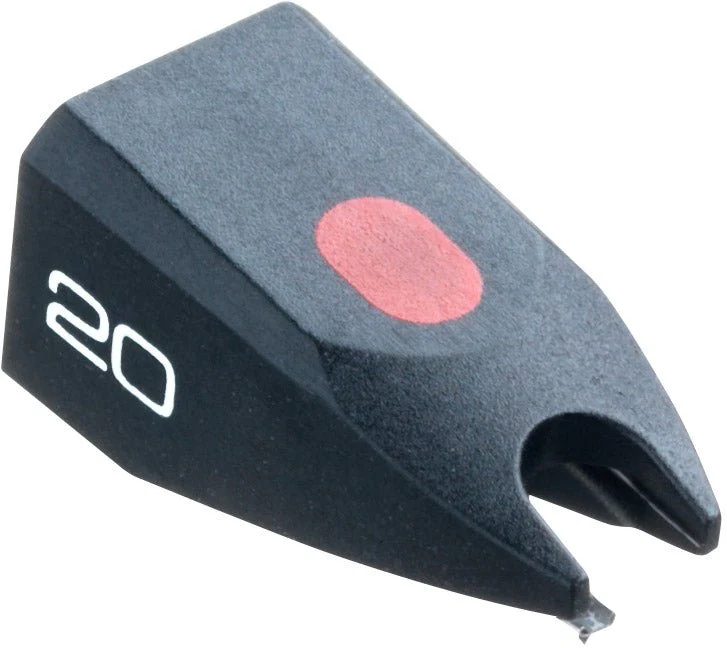

Replacement stylus for Ortofon 20 series cartridges
The Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate.
If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.
An OM cartridge from Ortofon allows for easy performance upgrades to an entire music system by simply replacing the stylus.
Technical data
Frequency range | 20-27,000 Hz
Frequency response | 20-20,000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force | 80 µm
Compliance, dynamic, lateral | 25 µm/mN
Stylus type | Nude Elliptical
Stylus tip radius | r/R 8/18 µm
Equivalent stylus tip mass | 0.4 mg
Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) | 1.5 g (15 mN)
Tracking angle | 20°
Stylus colour | Black
Recommended for the following cartridges
Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
Description
Replacement stylus for Ortofon 20 series cartridges
The Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate.
If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.
An OM cartridge from Ortofon allows for easy performance upgrades to an entire music system by simply replacing the stylus.
Technical data
Frequency range | 20-27,000 Hz
Frequency response | 20-20,000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force | 80 µm
Compliance, dynamic, lateral | 25 µm/mN
Stylus type | Nude Elliptical
Stylus tip radius | r/R 8/18 µm
Equivalent stylus tip mass | 0.4 mg
Tracking force range | 1.25-1.75 g (12.5-17.5 mN)
Tracking force (recommended) | 1.5 g (15 mN)
Tracking angle | 20°
Stylus colour | Black
Recommended for the following cartridges
Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
